• Built with a powder-coated MS frame for strength and durability.
  • Made using all-weather, fire-retardant Tensile (760 GSM) or PVC (760 GSM) fabric.
  • Includes a middle-layer roof insulation for better temperature control.
  • Offers a life span of up to 10 years (Tensile) and 8 years (PVC).
  • Black-out fabric used for side walls to block sunlight and heat.
  • Anti-bacterial and fire-retardant polyester lining of approx. 270 GSM.
  • Fitted with mosquito mesh for ventilation and protection.
  • Bamboo roll-up flaps on inner windows add natural charm and privacy.
  • Self-supported structure with ropes, stoppers, and pegs for stability.
  • Provisions for split AC and doors for modern comfort.
  • Designed to be durable, fire-safe, and suitable for all weather conditions.

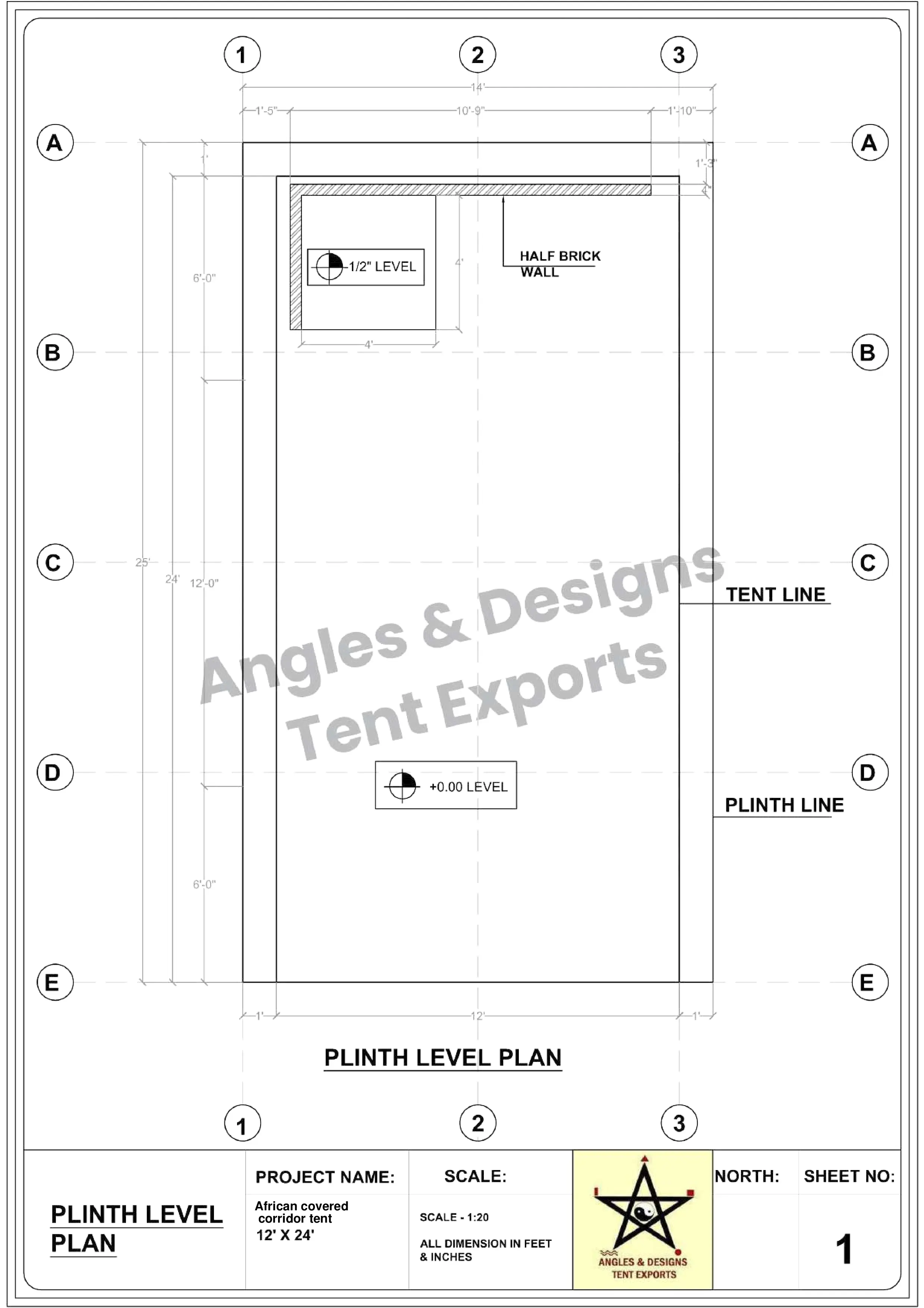

Tent Layout Image

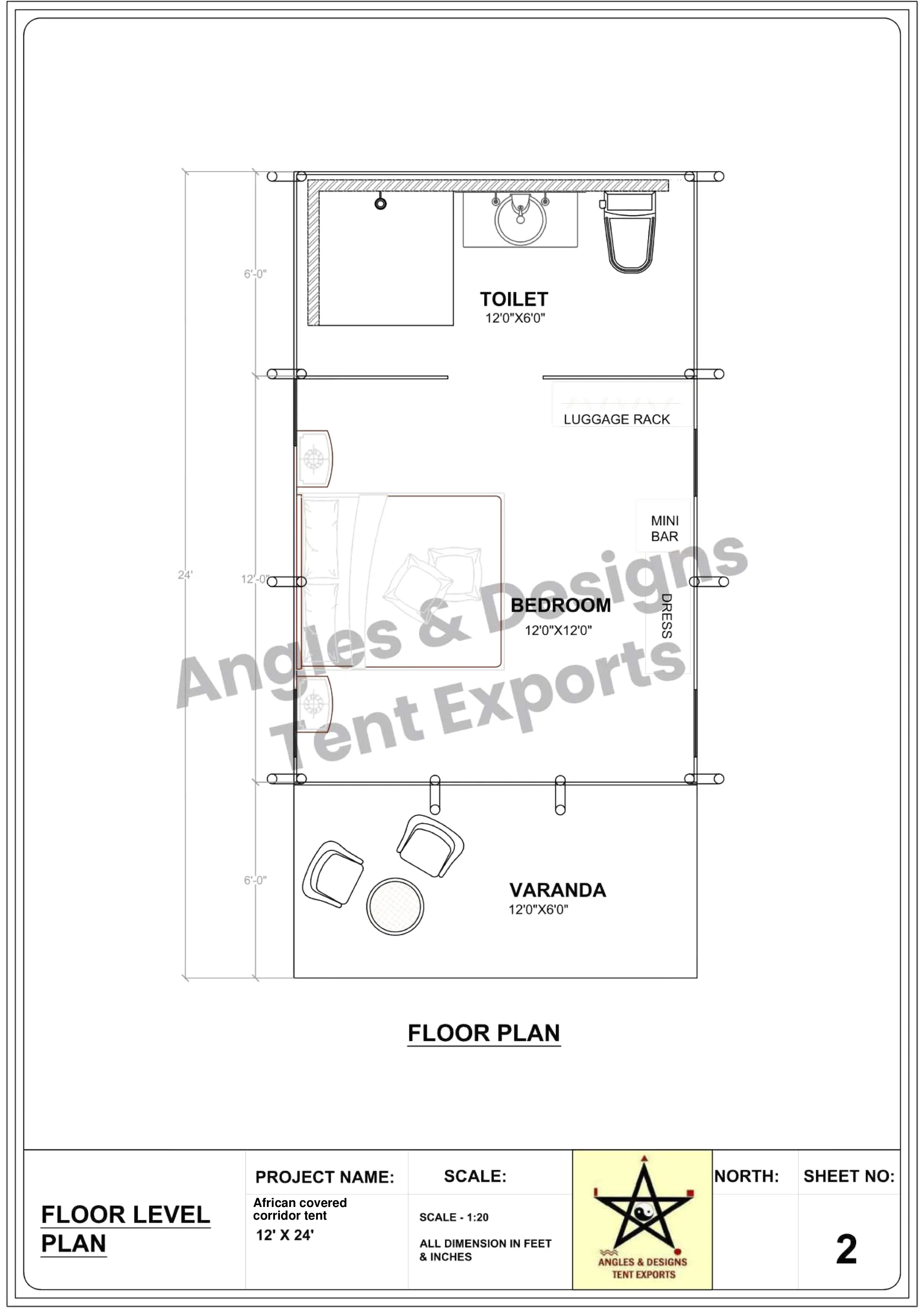

12x24 Tent Floor Level Plan

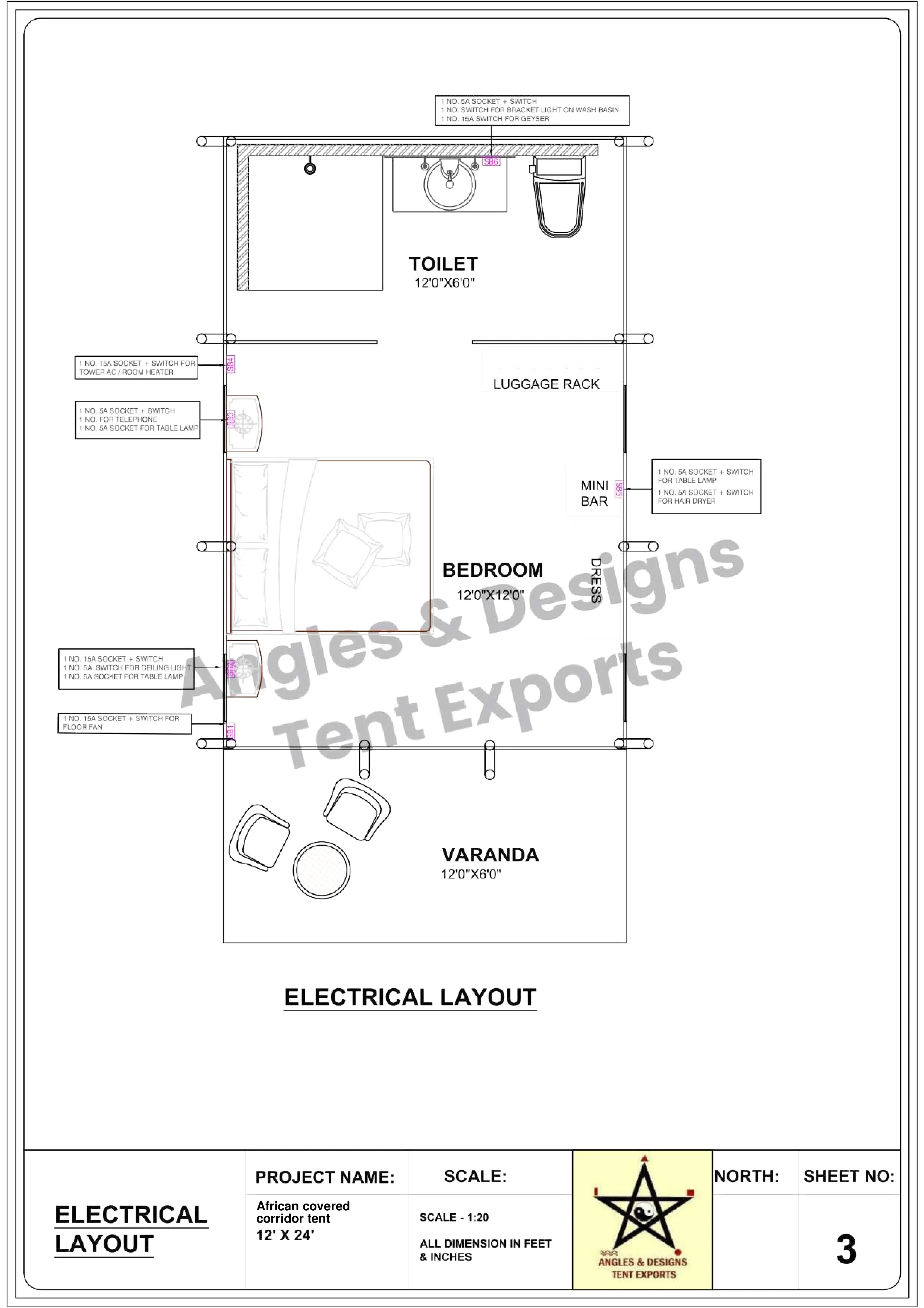

12x24 Tent Electrical Layout

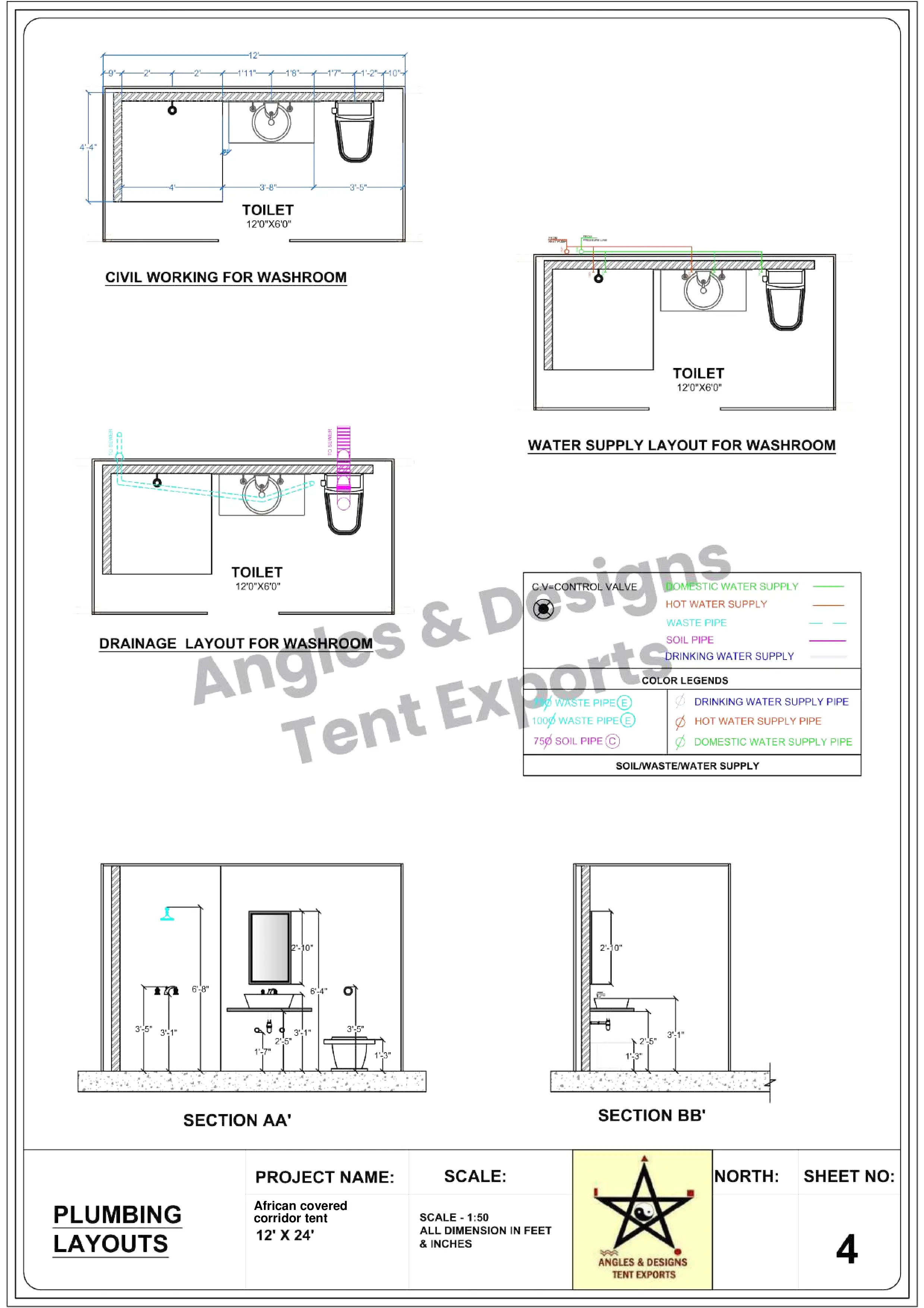

12x24 Tent Plumbing Layout
Details Size
Suggested Size 12 ft x 24 ft
Corridor Size 12 ft x 6 ft
Room Size 12 ft x 12 ft
Washroom Size 12 ft x 6 ft
Sidewall Height Approx. 6 ft
Centre Height Approx. 10 ft
No. of Windows 5 in room + 1 in washroom
Outer Roof Fire-Retardant & Antifungal PVC of 760GSM
Inner Roof Plain/Printed Polyester cloth
Outer Side Wall Fire-retardant and Antifungal Polyester Fabric of 270 GSM
Inner Side Wall Plain/Printed Polyester cloth
Window Roll-up Yes
Wooden Stoppers Yes
Make Powder Coated Iron Structure
Kindly note Covered Corridor with two windows in front & One on each Side

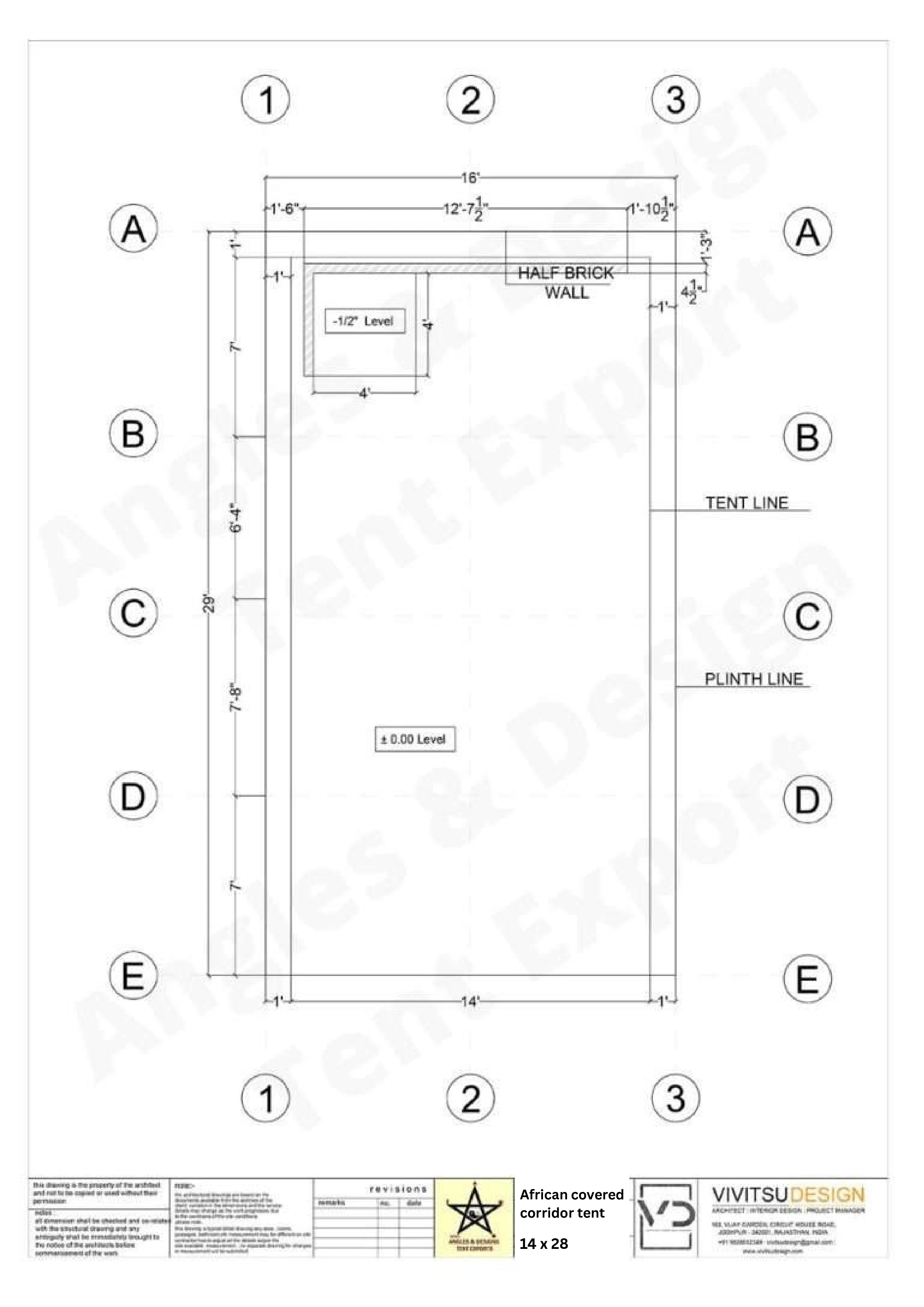

Tent Layout Image

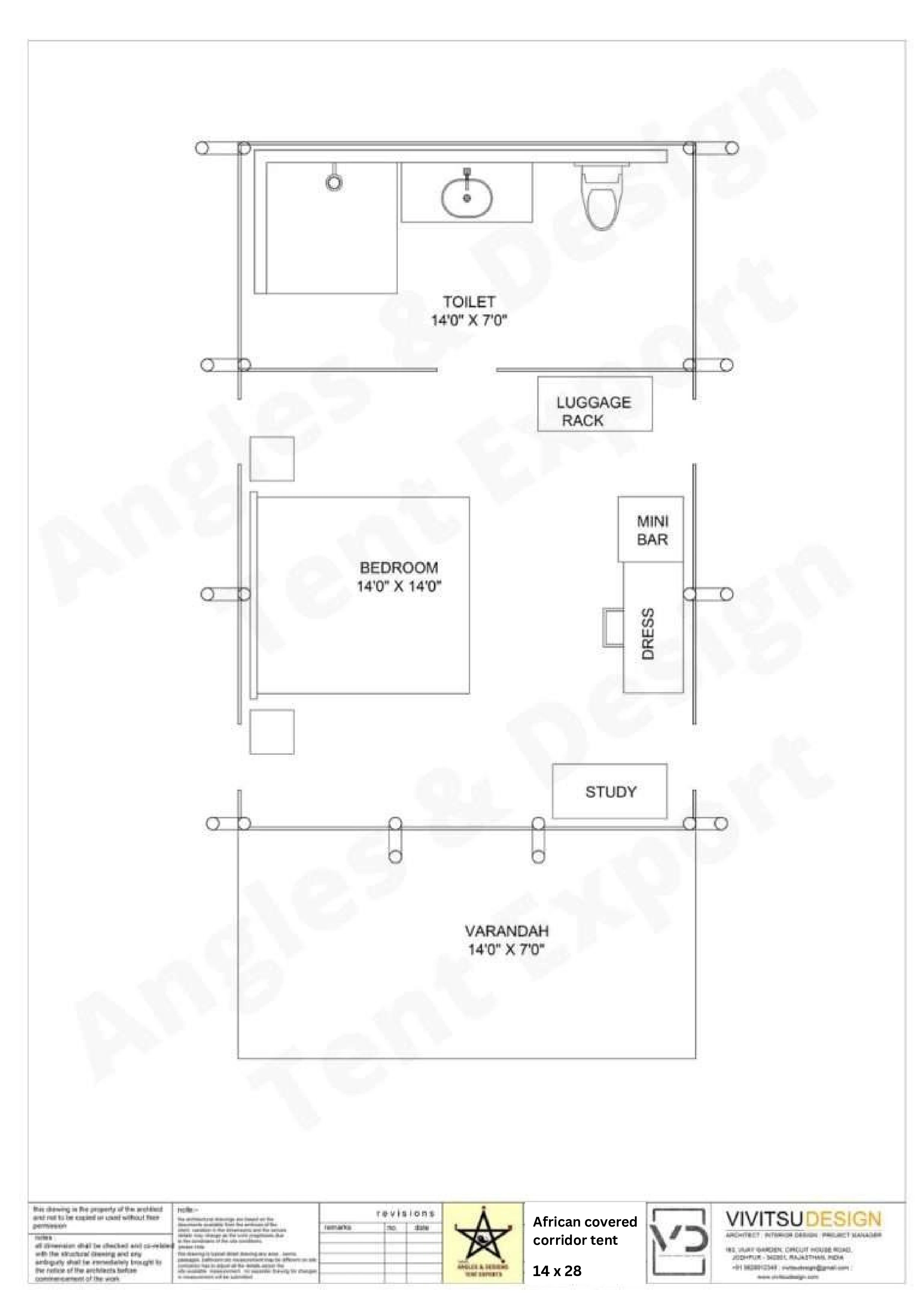

12x24 Tent Floor Level Plan

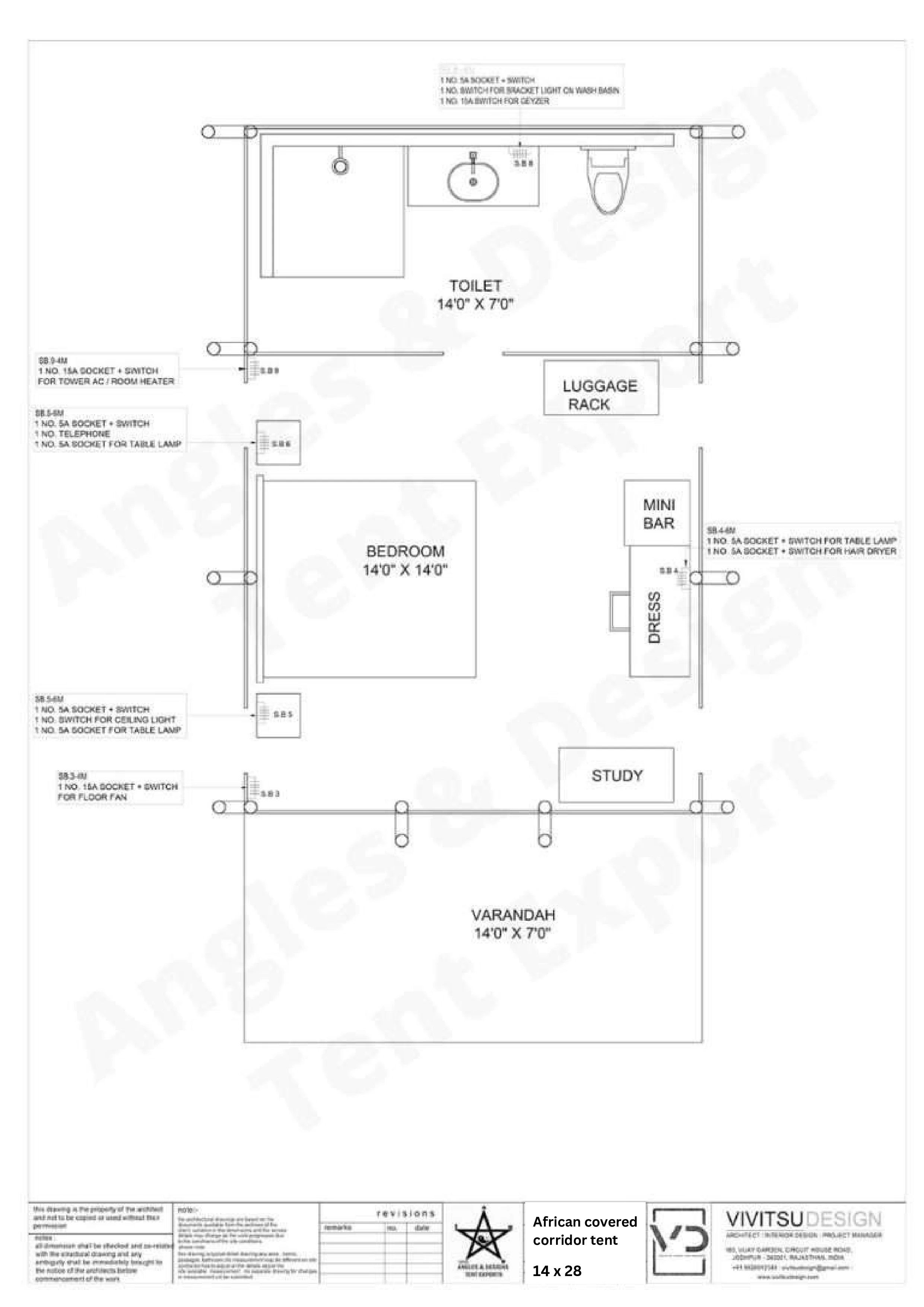

12x24 Tent Electrical Layout

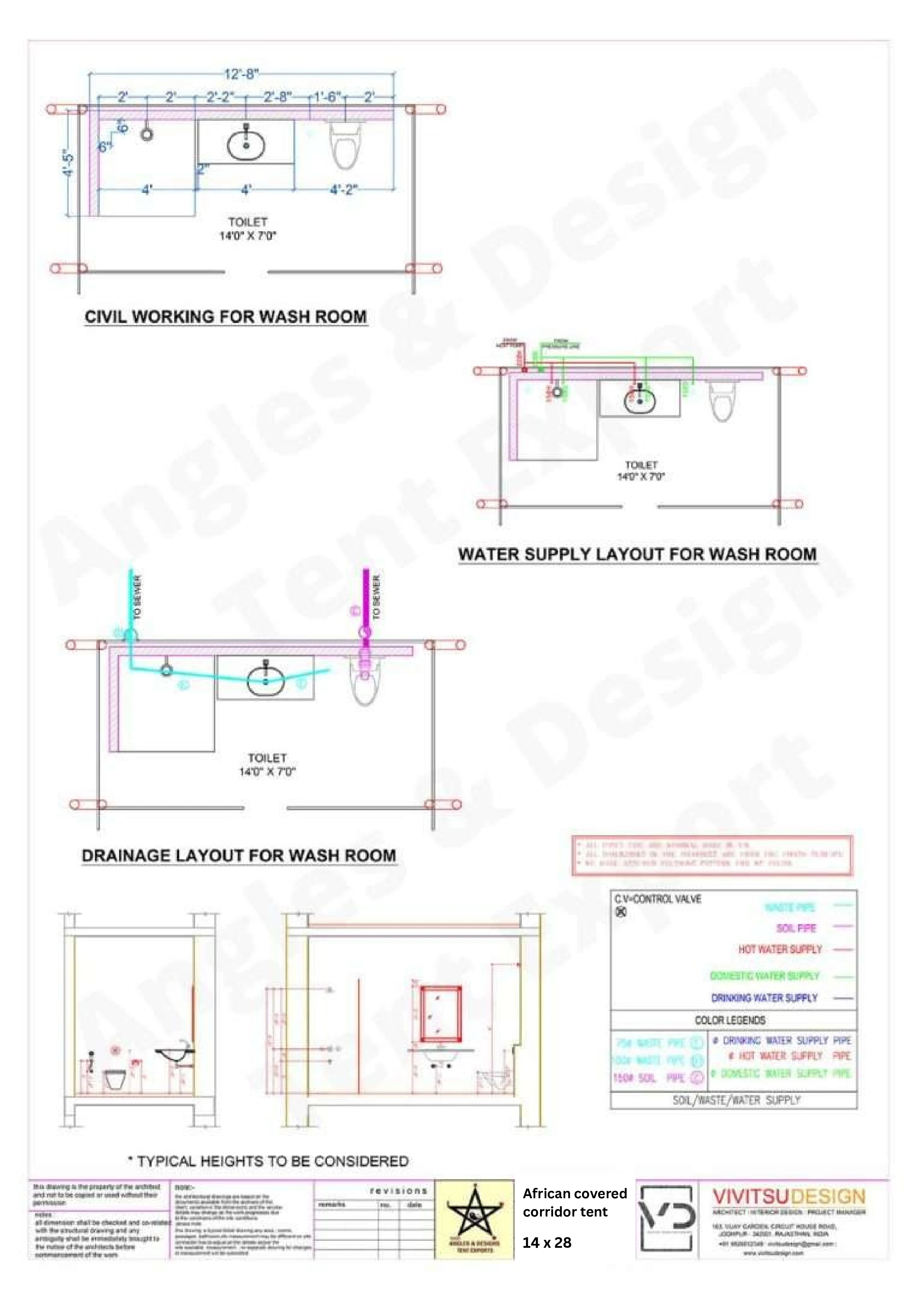

12x24 Tent Plumbing Layout
Details Size
Suggested Size 14 ft x 28 ft
Corridor Size 14 ft x 7 ft
Room Size 14 ft x 14 ft
Washroom Size 14 ft x 7 ft
Sidewall Height Approx. 6 ft
Centre Height Approx. 10 ft
No. of Windows 5 in room + 1 in washroom
Outer Roof Fire-Retardant & Antifungal PVC of 760GSM
Inner Roof Plain/Printed Polyester cloth
Outer Side Wall Fire-retardant and Antifungal Polyester Fabric of 270 GSM
Inner Side Wall Plain/Printed Polyester cloth
Window Roll-up Yes
Wooden Stoppers Yes
Make Powder Coated Iron Structure
Kindly note Covered Corridor with two windows in front & one on each Sides
Tent Layout Image

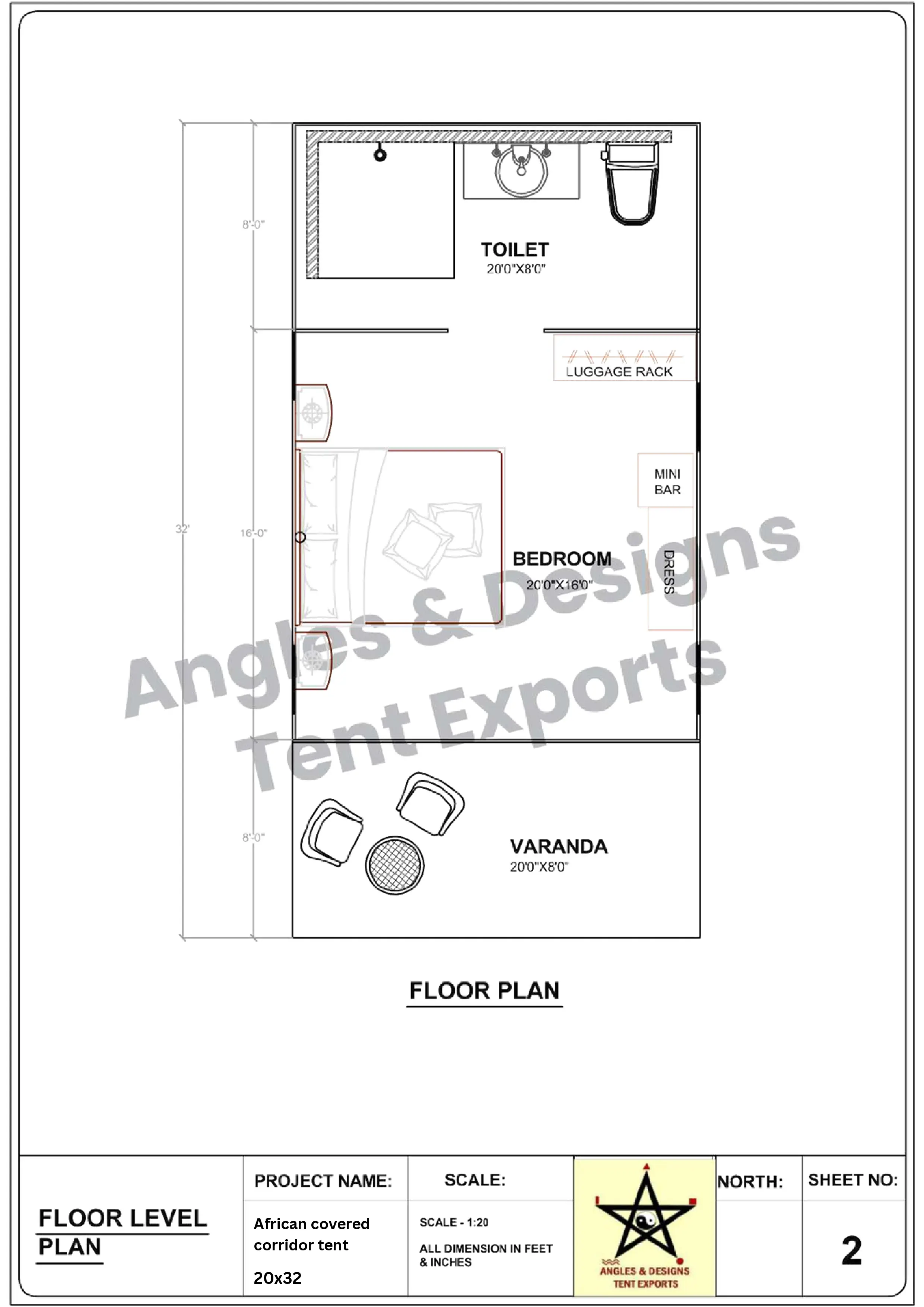

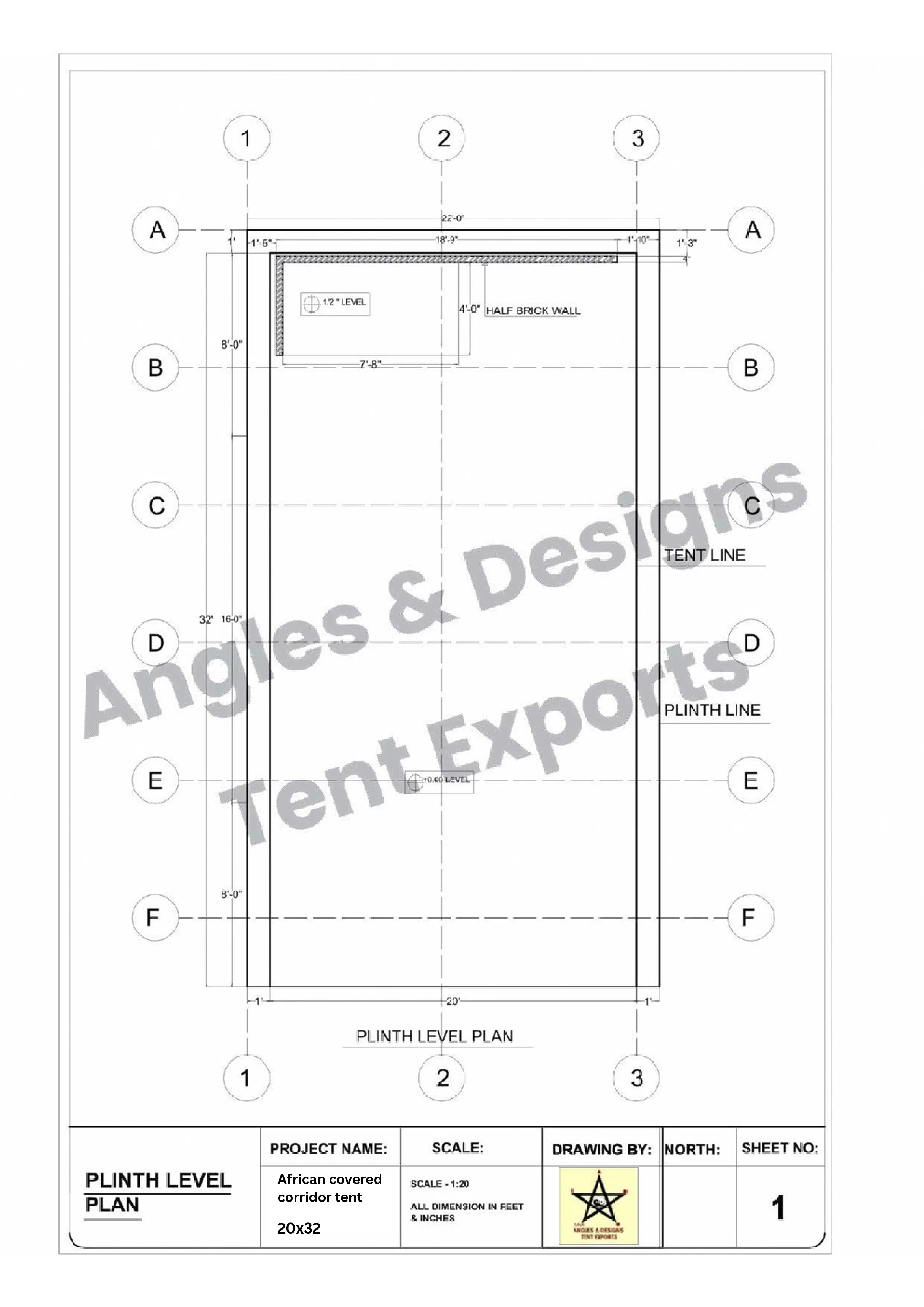

12x24 Tent Floor Level Plan

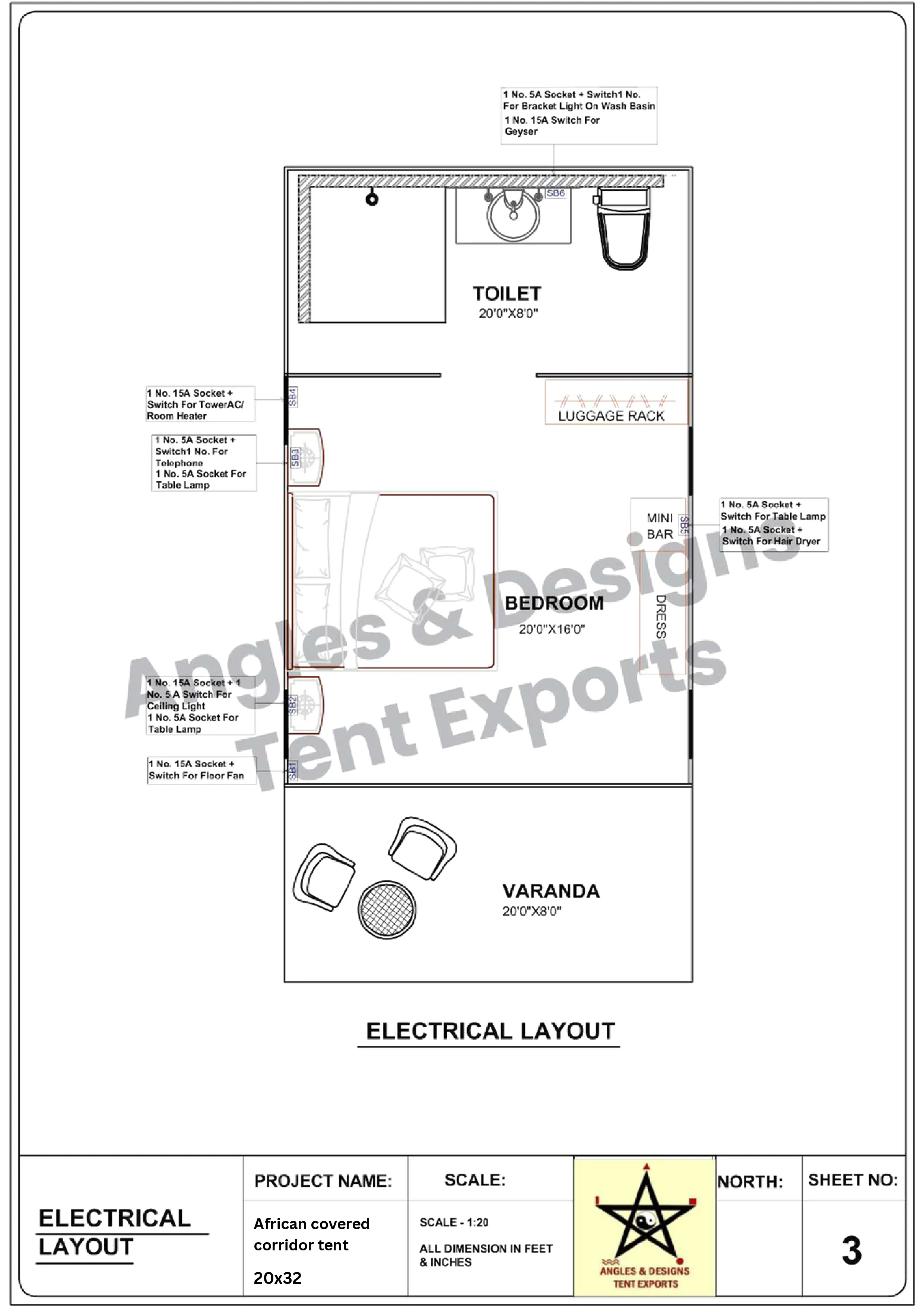

12x24 Tent Electrical Layout

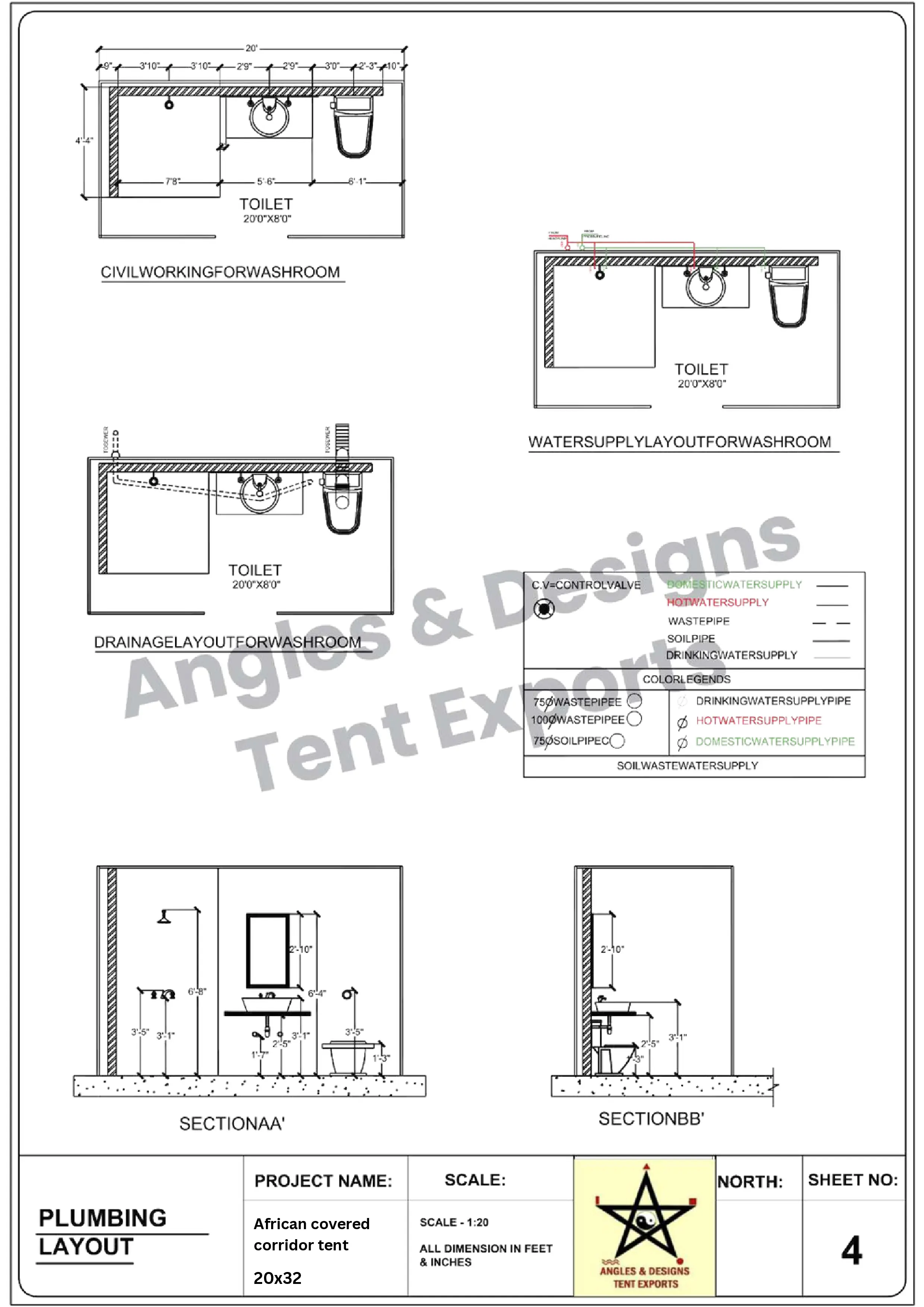

12x24 Tent Plumbing Layout
Details Size
Suggested Size 20 ft x 32 ft
Corridor Size 20 ft x 8 ft
Room Size 20 ft x 16 ft
Washroom Size 20 ft x 8 ft
Sidewall Height Approx. 6 ft
Centre Height Approx. 10 ft
No. of Windows 5 in room + 1 in washroom
Outer Roof Fire-Retardant & Antifungal PVC of 760GSM
Inner Roof Plain/Printed Polyester cloth
Outer Side Wall Fire-retardant and Antifungal Polyester Fabric of 270 GSM
Inner Side Wall Plain/Printed Polyester cloth
Window Roll-up Yes
Wooden Stoppers Yes
Make Powder Coated Iron Structure
Kindly note Covered Corridor with two windows in front & one on each Sides
